Our Game of Life implementation in Z80 Assembly was complete. First we developed it in a high level language and applied optimisations in time and space complexity using big O notation as our guide. Starting out in BASIC then switching to C as we refined our algorithms and data structures. Then we converted our C program to Z80 Assembly, using a Strangler Fig approach to replace each module in turn and applied efficiencies from working at a lower level. Once fully converted, reviewing the codebase as a whole helped us to identify and apply some machine language level optimisations that leaned into the idiosyncrasies of the Z80 CPU. That’s where we left it. Dormant. That is until about a week ago, after being awoken by some inspiration from elsewhere.

Recently there has been something in the ether of the ZX Spectrum dev community that’s obvious when you think about it, but hadn’t occurred to me as I worked in the weeds (how often is this the case?). It’s the use of ZX Spectrum ‘attributes’, screen colour information split into groups of 8x8 pixels, to do things like create a console style platformer that doesn’t seem to know it’s running on a system without hardware sprites or scrolling. Or apply a Snorkification to an old school Sinclair BASIC type-in to add an animated boulder that doesn’t slow everything down. In BASIC(!). The approach is this, instead of drawing 8x8 pixels i.e. 8 bytes at a time, at the right time, draw them up front and set the colour information of that 8 bytes at the right time. Requiring only 1 byte to be updated at the critical point instead of 8. Obvious, right? Well it had completely passed me by despite having routines called draw_cell, clear_cell, and draw_block that all deal in 8x8 pixels.

draw_cell draws an 8x8 checked pattern, clear_cell clears a cell, and draw_block fills in every pixel and applies the BRIGHT flag, which is stored as a bit in the 1 byte attribute along with colour information. Attributes are stored as a FLASH bit, a BRIGHT bit, 3 PAPER bits and 3 INK bits (so 8 colours). Or here a much better explanation of ZX Spectrum screen memory layout by L Break Into Program.

8-bit Micros all had their own way of implementing graphics, which is one of the really interesting things about vintage computing. I have a personal fascination for these quirks and things like hardware sprites and scrolling, which the ZX Spectrum didn’t have but it did have its quirks. You can fill books with them. The ZX Spectrum mapped two areas of memory, bitmap data and attribute data, directly to what was displayed on the screen. Bitmap data mapped to the individual pixels, on or off, while attribute data overlaid colour information split into groups of 8x8 pixels, 1 byte per group or ‘attribute’, which is a very efficient way of achieving colour graphics. Therefore attribute data was one eighth of the size of bitmap data and eight times as quick to fully populate, saving memory but at the expense of having the signature ZX Spectrum colour clash. Programmers implement graphics routines by writing to memory in those locations in the same way they write to memory anywhere else, which makes it straightforward.

The optimisation was therefore also straightforward. First fill the screen with a checked pattern using a UDG and the ROM print routine with white paper and ink, which as we know isn’t optimal but as this is setup code outside of the game loop then simple code > fast code. Then all draw_cell, clear_cell, and draw_block need to do is set the attribute memory of the given cell location instead of the bitmap memory. There is slightly more to it but it’s not unreasonable to suggest this is an eight times faster optimisation of those particular methods. The attribute is set to white paper and the current ink colour for draw_cell, white paper and white ink for clear_cell, and the current ink colour and matching paper with the BRIGHT flag set for draw_block.

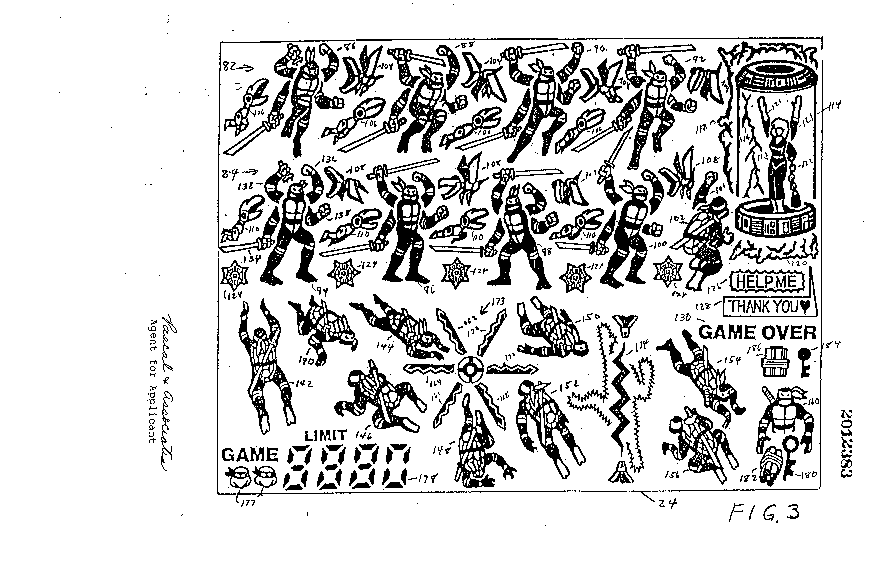

Of course there is a compromise happening here in that we are restricting the mutability of the bitmap data, requiring us to pre-fill the screen with all the shapes we need like the handheld LCD games of the 80s. This is a good way to think about it and I have fond memories of the TMNT Konami handheld. Trivial in our case, but more thought required for a moving boulder, or having an effectively lowered resolution scrolling background achieved by half filled cells. It’s a no brainer in our case as the user is oblivious and the implementation is straightforward, here is the commit.

Compromise and the least worst solution is fundamental in software architecture, in a good way, and this has given me food for thought about what else could be achieved through compromise. Perhaps an approach where some bitmap data is written for important details, but as much as possible is done with attribute data. Something like a super scaler style racing game where the car remains central but the road moves rapidly, using attribute data to quickly show and hide sections of the road and scenery, with occasional bitmap writes for the important details or finishing touches. That might seem ambitious but I was impressed with a simple yet clever demo not so long ago that broke things down nicely. I’ve always had a soft spot for OutRun and the ZX Spectrum version had strong graphics, but the fps suffered. A lot. Perhaps approaching things backwards, focusing on fps and starting with attributes, could give an Atari ST 50 fps racer that’s currently in development a run for its money.
